Inverter Project


This prject started with the idea to build a inverter for our new house.


This inverter was designed to last... I have used all new parts (the electrical parts) which can be pricey in the small quantities I need.

the basic requirments are:
1) Must be very very reliable, as it will run the whole house 24 hours a day.
2) Must be able to run a variety of loads... ranging from small motors up to 3 phase 10HP wood working tools.

Preliminary Specs:

0) 15kw total output power, 5KW per phase, 3 Phases
1) 48v battery bank
2) 120v RMS AC ouput (per phase)
3) 48v from batteries will be converted to positive and negative 170v DC at 80khz with ferrite transformer.
4) DC will then be converted into 120v AC with IGBT half bridge.
5) PWM carrier frequency will be 19khz
6) the carrier duty cycle will be modulated (PWM) to create a sine wave on the output
7) the outputs will be aranged in the star configuration, so that 208v single phase
may be obtained between any two phases.
8) The 19khz carrier frequency needs to be filtered out.

One PIC16F628 microcontrller will be used for each phase to generate the PWM signal from a lookup table. This method is very simple and straight foreward with few problems. One PIC16F628 is the master controller and the other two (slave phases) recieve a sync pulse from the master which tells them exactly when to reset the sine table.

There will be a main PIC16F77 controlling the inverter itself.. well mostly just watching over the other sections of the circuit to make sure it works right. If any values go above a preset the inverter will shut down and setoff an alarm.. This PIC is also responsible for driving a 4 line by 20 charicter LCD screen for data output.

RS-485 will link the inverter controller with two remote display panels (one as far as 800 feet) so I can watch over the state of charge in the batteries, charging current, output power.. ect... The RS-485 uses one twisted pair to transmit and recieve in half duplex mode, and two pairs in full duplex mode. It has a maxium distance of 4000 feet.

A test 1kw DC-DC converter has been completed and is functioning perfectly, the actual inverter section is also functioning as expected.

The output filters were causing me some trouble... I needed much higher inductance then originaly thought.

Firmware files

Inverter 19khz with sine wave modulation -- explanation of code in file





Schematic files:

-- Still preliminary
-- let me know if you are really going to use these, to make sure they are the newest versions
-- I made the schematics in Splan, if you would like the files to edit them ask.

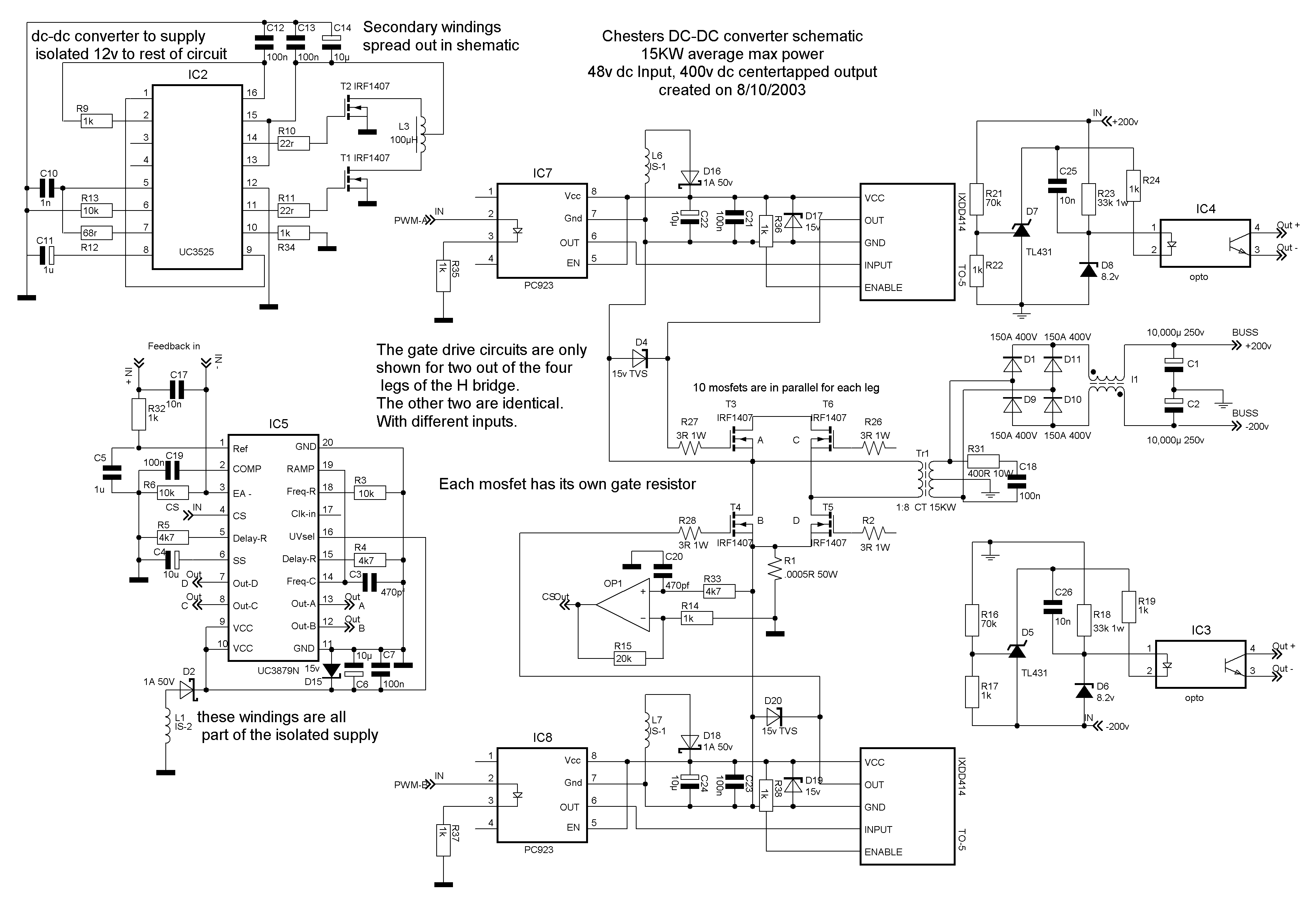

DC-DC converter full schematic 121kb

AC Inverter Power Half Bridge ~200kb

AC Inverter Simple schematic 67kb

Board Designs

Half Bridge Inverter PCB design

none yet

Construction Section:

15 KW Ferrite Transformer

1 KW Prototype DC-DC

Pictures:

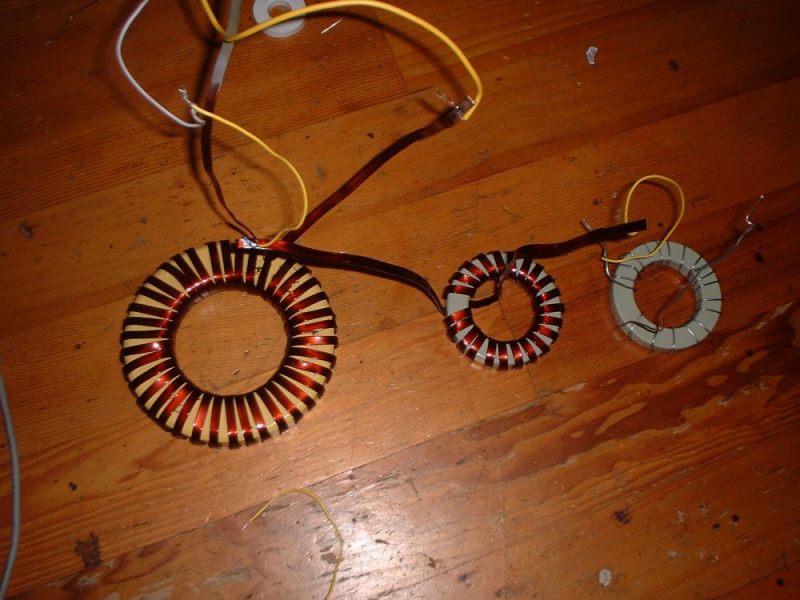

Output filters, left is a 5.2" iron powder toroid material #26, middle is a 3" high flux core, right is same core.

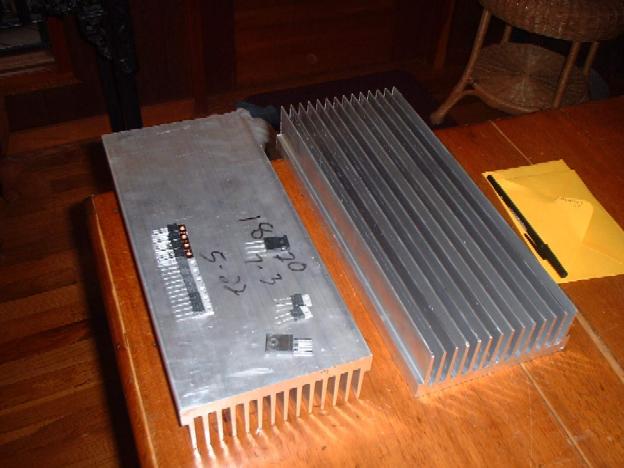

Large heatsinks I bought off Ebay.

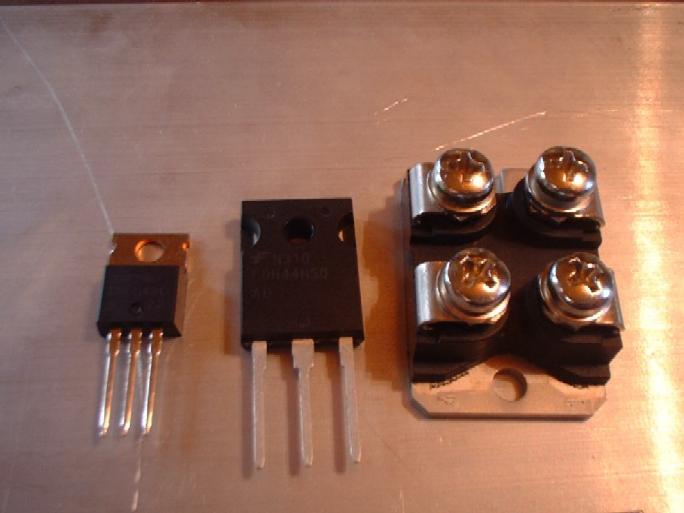

left is IRF1407(130A 75V), FDH44N50(44A 500V), GA200SA60U(200A 600V)

all 100 of my 200A 600V IGBTs.. let me know if you want to buy some for $8 each

All of my ideas/theories are open to question... this is by no means a finished project, im sure many faults will be discovered along the road.
